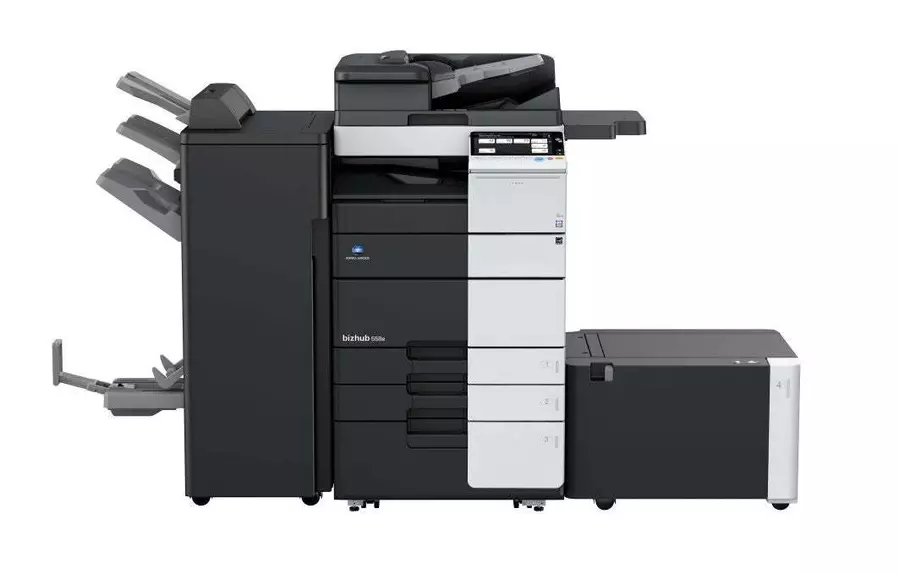

Konica Minolta bizhub 558e office printer
Konica Minolta bizhub 558e office printer
Konica Minolta bizhub 558e office printer

bizhub 558e

  • Speed A4/A3: 55/27 ppm in black & white
  • Paper formats: A6-SRA3, custom formats and banner format up to 1.2 metres length
  • 9-inch colour touch panel with multi-touch support and dedicated mobile touch area provides more convenience and flexibility for today's work style
  • Reduced environmental impact thanks to state-of-the-art technology that ensures competitively low energy consumption – which saves both energy and money
  • Highest data security with various security functionalities that reduce the risk of data loss and keep confidential data safe
Konica Minolta bizhub 558e office printer
Konica Minolta bizhub 558e office printer
Konica Minolta bizhub 558e office printer

Functionalities

Functionalities

Box

  • Auto deletion

    Automatic deletion of files stored in a user box after a predefined period

  • Box function

    Storing of print, copy, scan and fax jobs for recall to send and print - for frequently printed documents like brochures, forms, pricelists etc.

  • Online access

    User box file access via web browser or box operator utility

  • Personal, Group and Public

    User access definition for different boxes

  • Sharing

    Copying of documents from user box to user box

Functionality Copy

Copy

Functionality Copy
  • Blank page removal

    Automatic deletion of blank pages e.g. when copying mixed simplex and duplex documents

  • Card shot

    Prints copies of the front and back of the original on the same page, e.g. for passport and other ID

  • Copy protection

    Prints a concealed security watermark in the background that appears when copied

  • Custom function bar

    Up to 2 x 7 copy functions can be freely selected for the main copy screen

  • Job preview

    Illustrates selected copy functions on screen

Fax

  • Fax forwarding

    Forwarding of incoming fax documents by email or to SMB folder instead of printing

  • IP-Fax

    Sending of fax messages via network between Konica Minolta MFPs; supports colour as well as black & white

  • PC-Fax

    Direct fax transmission from the PC

  • Shared address book

    The MFP-internal address book can be shared with the PC fax client

  • Tray selection

    Choice of input tray / print media and output tray for easy visibility of incoming faxes

Functionality Green

Green

Functionality Green
  • Conforms to international environmental standards

    Like Energy Star or Blue Angel Mark

  • Dynamic eco timer

    Automatic analysis of working hours and adjustment of sleep mode timing

  • ECO meter

    Counter for ECO related items e.g. power consumption

  • ECO print

    Touch screen panel does not light up for printing out of sleep mode

  • ECO scan

    Scanning of documents without warm-up of the print engine

Print

  • Carbon Copy print

    Single page printing from multiple trays

  • Direct print

    Driverless printing of PDF, XPS, DOCX, XLSX, PPTX, JPEG, TIFF, PS and PCL

  • MyTab

    Print driver customisation

  • Smart job queue

    Unprintable jobs e.g. because of unavailable paper size (copy, print and fax) are bypassed by consecutive jobs

  • Toner save mode

    Helps save toner by reducing toner consumption e.g. for draft prints

Scan

  • Mixed original scanning

    Automatic scanning of originals with different formats

  • Blank page removal

    Automatic deletion of blank pages e.g. when scanning mixed simplex and duplex documents

  • Scan preview

    Provides a real-time preview of scanned originals for checking before sending

  • Scan programs

    Pre-setting of original, scan file and destination for regular scan jobs

  • Scan-to-Me/Home

    Direct scan to own email address (Me) or SMB folder (Home) based on Active Directory information

Security

  • Authentication

    User access by password, user name + password, ID card or finger vein scanner

  • bizhub SECURE

    Konica Minolta Security consultancy and MFP setup

  • Data encryption

    Encryption of data stored on hard disk and password protection for hard disk access

  • Hard disc mirroring

    real-time synchronisation with back-up HDD to prevent the risk of data loss

  • Network security

    Support for SSL/TLS, HTTPS, 802.1x and IPsec

Services

Services

iTraining - get to know and use your bizhub device quickly and efficiently

No matter what the changes or additions to your office routine – to ensure ongoing productivity and efficiency, you need to incorporate any alterations and master new technology as fast as possible. Konica Minolta...

iTraining - get to know and use your bizhub device quickly and efficiently

No matter what the changes or additions to your office routine – to ensure ongoing productivity and efficiency, you need to incorporate any alterations and master new technology as fast as possible. Konica Minolta...

Enabling Carbon Neutrality

Konica Minolta offsets unavoidable CO2 emissions produced during office and production printing at reasonable prices. We pay for manufacturing and transportation of the product, while the customer covers...

bizhub SECURE – Discover what advanced security could do for your business

The bizhub SECURE service can be activated on any Konica Minolta bizhub multifunctional device, either on-premises or prior to delivery, so no matter the size of your business, you can operate with confidence. Once bizhub...

Universal Design & Accessibility

Front access makes it easy for any user to refill paper or replace toner cartridges, quickly and without hassle; large handles are easy to grip and facilitate handling.

Konica Minolta MarketPlace

MarketPlace lets you enhance your IoT devices such as bizhubs and WorkPlace Hubs with highly useful functionality and solutions designed to transform the way you handle document management. In this way, it can fix both...

Configure your device

Interested to see all features and options and build your very own bizhub 558e?

Click here to configure your device

Features

Features

bizhub 558e

These are the Key Features of the bizhub 558e

  • Technology feature icon

    Core technology

    State-of-the-art technologies include next generation Emperon controller, next generation Simitri HD polymerised toner and new application platform – streamlines office workflows and ensures high-quality output.

  • Customization feature icon

    Interface customisation

    Enhance your efficiency for small and more complex copy, print, scan and fax jobs by adjusting the MFP panel and printer driver interface to your specific needs.

  • Manage all your campaigns in one portal

    Multi-touch panel

    More enjoyable to work with thanks to high-performance 9-inch multi-touch colour display: Offers easy navigation and operation similar to today's smartphones and tablets. The newly integrated mobile touch area provides work experience and flexibility on a new level.

Konica Minolta bizhub 558e office printer
  • Sustainability feature icon

    Sustainability

    Save costs and support the environment with the new green technologies that bring down power consumption and reduce environmental impact.

  • Finishing feature icon

    Versatile finishing

    Versatile finishing options include stapling, punching, letter-folding of up to 3 sheets per letter and booklets of up to 20 sheets (80 pages) for improved office productivity and professional documents.

Print from anywhere, anytime:

Apple Airprint logo
WIFI Access Point Icon
Mobile Printing Web Icon

Specifications & Downloads

Specifications & Downloads
  • System speed A4 Up to 55 ppm
  • System speed A4 Up to 55 ppm
  • System speed A3 Up to 27 ppm
  • Autoduplex speed A4 Up to 55 ppm
  • 1st page out time A4 3.5 sec.
  • Warm-up time Approx. 22 sec.¹
  • Imaging technology Laser
  • Toner technology Simitri® HD polymerised toner
  • Panel size/resolution 9" / 800 x 480
  • System memory 4,096 MB (standard/max)
  • System hard drive 250 GB (standard)
  • Interface 10/100/1,000-Base-T Ethernet; USB 2.0; Wi-Fi 802.11 b/g/n/ac (optional)
  • Network protocols TCP/IP (IPv4 / IPv6); SMB; LPD; IPP; SNMP; HTTP(S)
  • Automatic document feeder Up to 300 originals; A6-A3; 35-210 g/m²; Dualscan ADF
  • ADF double feed detection Optional
  • Printable paper size A6-SRA3; customized paper sizes; banner paper max. 1,200 x 297 mm
  • Printable paper weight 52-300 g/m²
  • Paper input capacity 1,150 sheets / 6,650 sheets (standard/max)
  • Paper tray input (standard) 1x 500; A5-A3; 52-256 g/m²
    1x 500; A5-SRA3; 52-256 g/m²
  • Paper tray input (optional) 1x 500 sheets; A5-A3; 52-256 g/m²
    2x 500 sheets; A5-A3; 52-256 g/m²
    1x 2,500 sheets; A4; 52-256 g/m²
  • Large capacity tray (optional) 1x 3,000; A4; 52-256 g/m²
    1x 2,500; A4-SRA3; custom sizes; 52-256 g/m²
  • Manual bypass 150 sheets; A6-SRA3; custom sizes; banner; 60-300 g/m²
  • Finishing modes (optional) Offset; Group; Sort; Staple; Punch; Half-fold; Letter-fold; Booklet; Post insertion; Z-fold
  • Automatic duplexing A6-SRA3; 52-256 g/m²
  • Output capacity Up to 250 sheets / up to 3,300 sheets (standard/max)
  • Stapling output capacity Max. 200 sets
  • Stapling Max. 100 sheets or 98 sheets + 2 cover sheets (up to 209 g/m²)
  • Letter fold Max. 3 sheets
  • Letter fold capacity Max. 30 sets; unlimited (without tray)
  • Booklet Max. 20 sheets or 19 sheets + 1 cover sheet (up to 209 g/m²)
  • Booklet output capacity Max. 20 booklets; unlimited (without tray)
  • Duty cycle (monthly) Rec. 33,000 pages; Max.² 250,000 pages
  • Toner lifetime Black up to 26,000 pages
  • Imaging unit lifetime Black up to 285,000/600,000 pages (drum/developer)
  • Power consumption 220-240 V / 50/60 Hz; Less than 2.00 kW
  • System dimension (W x D x H) 615 x 755 x 961 mm (without options)
  • System weight Approx. 96.0 kg (without options)
  • Print resolution 1,800 (equivalent) x 600 dpi; 1200 x 1200 dpi
  • Page description language PCL 6 (XL3.0); PCL 5; PostScript 3 (CPSI 3016); XPS
  • Operating systems Windows 7 (32/64); Windows 8.1 (32/64); Windows 10 (32/64); Windows Server 2008 (32/64); Windows Server 2008 R2; Windows Server 2012; Windows Server 2012 R2; Windows Server 2016; Windows Server 2019; macOS 10.10 or later; Unix; Linux; Citrix
  • Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin
  • Mobile printing AirPrint (iOS); Mopria (Android); Konica Minolta Print Service (Android); Konica Minolta Mobile Print (iOS/Android)
    optional: Google Cloud Print; WiFi Direct
  • Scan speed Up to 120/120 ipm in simplex (mono/colour)
    Up to 240/240 ipm in duplex (mono/colour)
  • Scan resolution Up to 600 x 600 dpi
  • Scan modes Scan-to-eMail (Scan-to-Me); Scan-to-SMB (Scan-to-Home); Scan-to-FTP; Scan-to-Box; Scan-to-USB; Scan-to-WebDAV; Scan-to-DPWS; Scan-to-URL; TWAIN scan
  • File formats JPEG; TIFF; PDF; Compact PDF; Encrypted PDF; XPS; Compact XPS; PPTX
    optional: Searchable PDF; PDF/A 1a and 1b; Searchable DOCX/PPTX/XLSX
  • Scan destinations 2,000 destinations + 100 groups; LDAP support
  • Copy resolution 600 x 600 dpi
  • Gradation 256 gradations
  • Multicopy 1-9,999
  • Original format Max. A3
  • Magnification 25-400% in 0.1% steps; Auto-zooming
  • Fax standard Super G3 (optional)
  • Fax transmission Analogue; i-Fax; Colour i-Fax; IP-Fax
  • Fax resolution Up to 600 x 600 dpi
  • Fax compression MH; MR; MMR; JBIG
  • Fax modem Up to 33.6 Kbps
  • Fax destinations 2,000 single + 100 groups
  • Storable documents Up to 3,000 documents or 10,000 pages
  • Type of user boxes Public; Personal (with password or authentication); Group (with authentication)
  • Type of system boxes Secure print; Encrypted PDF print; Fax receipt; Fax polling
  • Security ISO15408 Common Criteria; IP filtering and port blocking; SSL2; SSL3 and TLS1.1/1.2/1.3 network communication; IPsec support; IEEE 802.1x support; User authentication; Authentication log; Secure print; Kerberos; Hard drive overwrite (8 standard types); Hard drive data encryption (AES 256); Memory data auto deletion; Confidential fax; Print user data encryption
    optional: Hard drive mirroring; Copy protection (Copy Guard, Password Copy)
  • Accounting Up to 1,000 user accounts; Active Directory support (user name + password + e-mail + smb folder); User function access definition; Authentication by mobile device (Android)
    optional: Biometric authentication (finger vein scanner); ID card authentication (ID card reader); Authentication by mobile device (iOS)
  • Software Net Care Device Manager; Data Administrator; Box Operator; Web Connection; Print Status Notifier; Driver Packaging Utility; Log Management Utility
  • All specifications refer to A4-size paper of 80 g/mquality.
  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
  • The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (6% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that any specifications mentioned will be error-free.
  • All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
